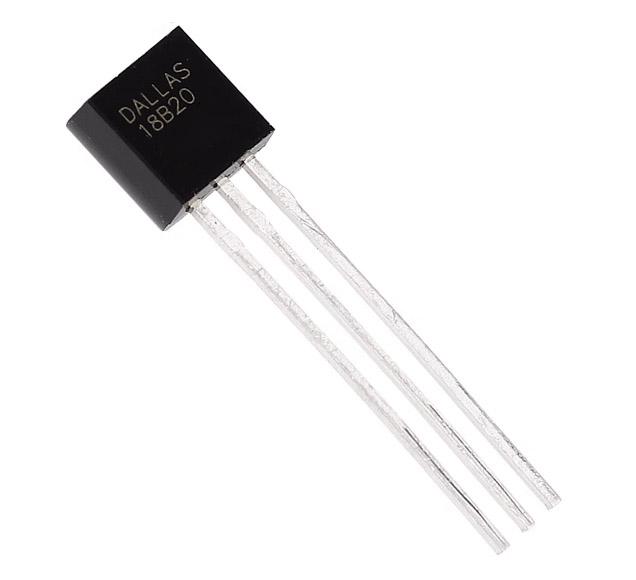

DS18B20+ TO-92 Temperaturgivare

Art nr: 40359820
Handla denna produkt DS18B20+ TO-92 Temperaturgivare
pris 58.50 SEK
Inklusive 25% moms
Mängdrabatt
AntalPris
1 till9
58.50 SEK
10 till24
52.65 SEK
25 till
43.85 SEK
Lagervara, 30 st
Enhet: styck

12 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

Programmable Resolution 1-Wire Digital Thermometer

The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of -55°C to +125°C and is accurate to ±0.5°C over the range of -10°C to +85°C. In addition, the DS18B20 can derive power directly from the data line ("parasite power"), eliminating the need for an external power supply. Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.


Features

FEATURES
* Unique 1-Wire® Interface Requires Only One Port Pin for Communication
* Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM
* Multidrop Capability Simplifies Distributed Temperature-Sensing Applications
* Requires No External Components
* Can Be Powered from Data Line; Power Supply Range is 3.0V to 5.5V
* Measures Temperatures from -55°C to +125°C
* ±0.5°C Accuracy from -10°C to +85°C
* Thermometer Resolution is User Selectable from 9 to 12 Bits
* Converts Temperature to 12-Bit Digital Word in 750ms (Max)
* User-Definable Nonvolatile (NV) Alarm Settings
* Alarm Search Command Identifies and Addresses Devices Whose Temperature is Outside Programmed Limits (Temperature Alarm Condition)
* Software Compatible with the DS1822
* Applications Include Thermostatic Controls, Industrial Systems, Consumer Products, Thermometers, or Any Thermally Sensitive System

Produktinformation

  • SKU:

    40359820
