Produktbeskrivning

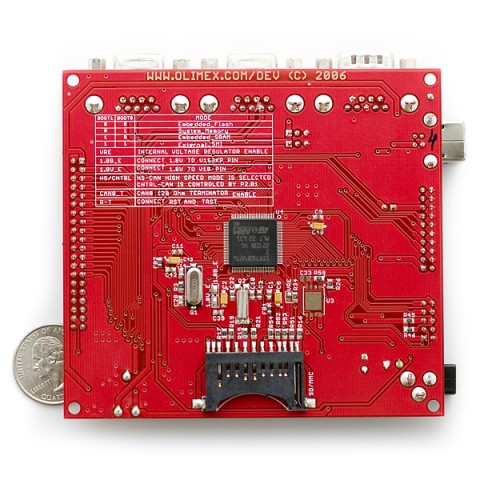

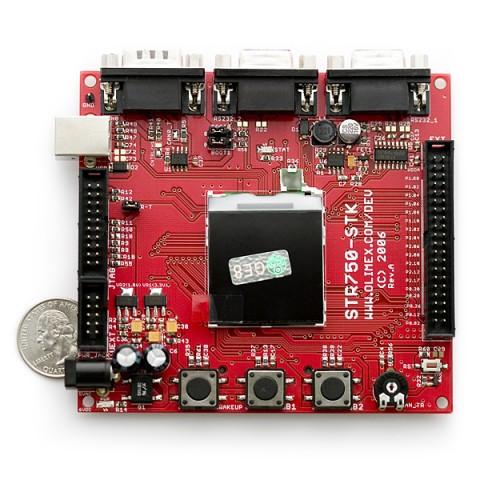

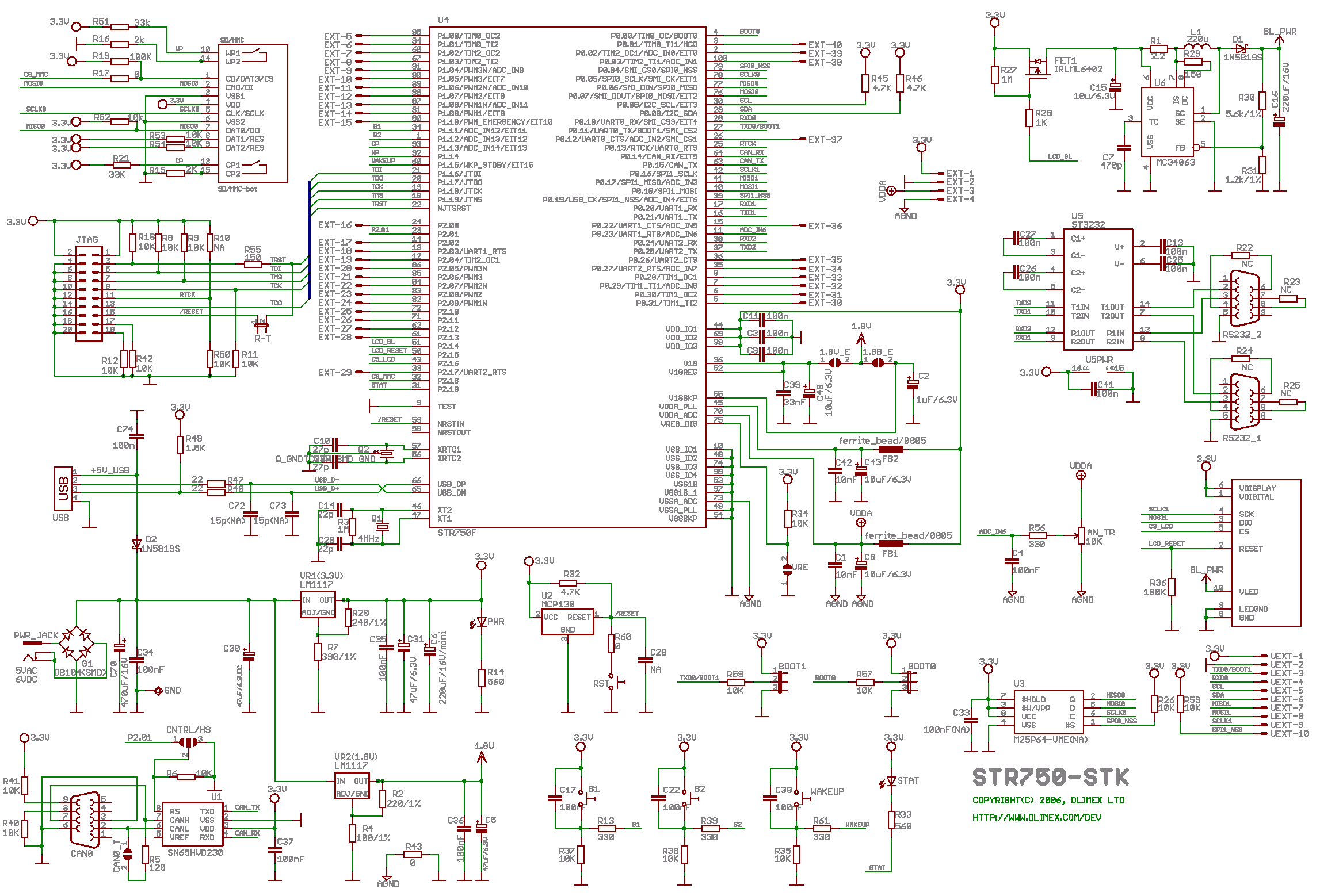

Development platform for the STR750 ARM7 processor.
Features:
MCU: STR750
Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
USB 2.0 device port
3x RS232 interface and drivers
3x Buttons
Trimmer potentiometer
Nokia 6610 TFT COLOR LCD display 128x128 pixel 12 bit color with backlight
UEXT - 10 pin extension connector for Olimex addon peripherials like MP3, RF2.4Ghz, RFID etc. modules
On board voltage regulators with up to 800mA current
Single power supply: 6-9VDC required
Power supply LED
Sower supply filtering capacitor
Reset circuit
Reset button
4MHz crystal
PCB: FR-4, 1.5 mm (0.062"), soldermask, silkscreen component print
Dimensions: 110 x 101 mm (4.33 x 3.98")
