WirelessUSB LR 2.4-GHz DSSS Radio SoC
The CYWUSB6935 transceiver is a single-chip 2.4-GHz Direct Sequence Spread Spectrum (DSSS) Gaussian Frequency Shift Keying (GFSK) baseband modem radio that connects directly to a microcontroller via a simple serial peripheral interface.
Features
* 2.4-GHz radio transceiver
* Operates in the unlicensed Industrial, Scientific, and Medical (ISM) band (2.4 GHz-2.483 GHz)
* -95dBm receive sensitivity
* Up to 0dBm output power
* Range of up to 50 meters or more
* Data throughput of up to 62.5 kbits/sec
* Highly integrated low cost, minimal number of external components required
* Dual DSSS reconfigurable baseband correlators
* SPI microcontroller interface (up to 2-MHz data rate)
* 13-MHz input clock operation
* Low standby current < 1 µA
* Integrated 32-bit Manufacturing ID
* Operating voltage from 2.7V to 3.6V * Operating temperature from -40° to 85°C

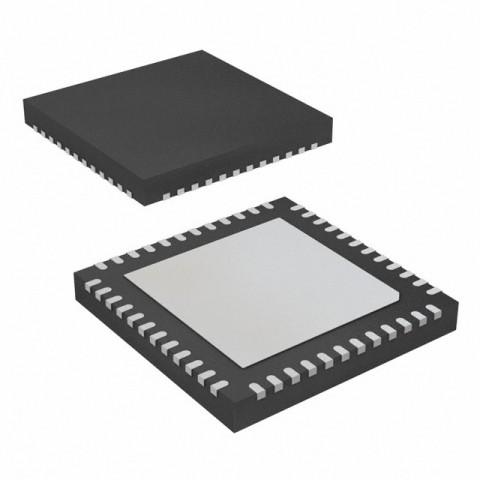

* Offered in a small footprint 48 QFN
Applications
* Building/Home Automation
- Climate Control
- Lighting Control
- Smart Appliances
- On-Site Paging Systems
- Alarm and Security
* Industrial Control
- Inventory Management
- Factory Automation
- Data Acquisition
* Automatic Meter Reading (AMR)
* Transportation
- Diagnostics
- Remote Keyless Entry
* Consumer / PC
- Locator Alarms
- Presenter Tools
- Remote Controls
- Toys
