Produktbeskrivning

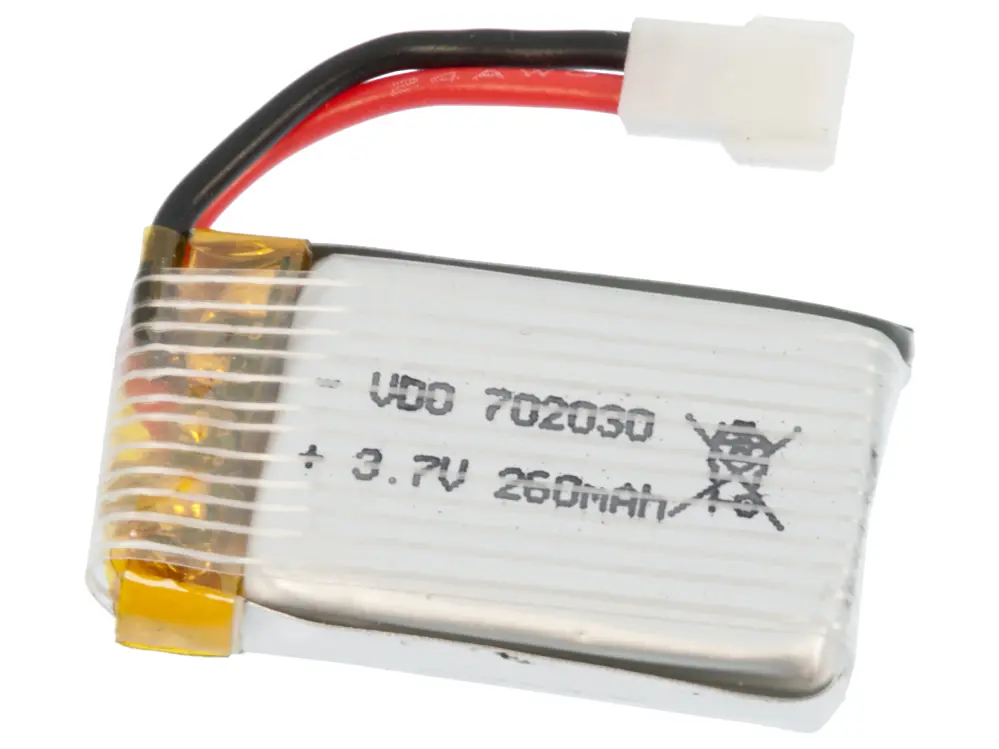

LiPo battery 3.7 V 260 mAh - high current. Compact pouch cell for portable electronics, embedded systems, drones (UAV), robotics, sensors, etc. Ideal for applications where space and weight are important factors. Equipped with a built-in protection circuit (PCM, Protection Circuit Module) that protects against overcharging, deep discharging and short circuit. The protection circuit increases operational safety and service life of the cell. LiPo batteries must only be charged with chargers / charging circuits intended for LiPo cells.
Other: The battery is suitable as a replacement battery for Crazyflie drones.
Specifications:
- Nominal capacity: 260 mAh
- Nominal voltage: 3.7 V
- Maximum charge voltage: 4.2 V
- Cutoff voltage: 3 V
- Charge current (max): 2C (520 mA)
- Discharge current (max): 25C (6500 mA)
- Operating temperature charging: 0 to 55 °C
- Operating temperature discharge: -20 to 55 °C
- Connection: 25 mm cable with Molex 51005 connector
- Dimensions: 30 x 20 7 mm
- Weight: 7.5 g
Safety information:
- Charge only with equipment designed for Li-Po cells and follow the manufacturer’s instructions.
- Charge on a stable and non-flammable surface and never leave the battery unattended during charging.
- Charge only within the specified temperature range according to the specification.
- Discharge current / charge current must not exceed the specified maximum value.
- Do not use the battery if it is damaged, swollen, overheated, or leaking. Such a battery must be taken out of service, handled with care, and delivered to proper recycling.
- Immediately stop use or charging if unusual odor, temperature increase, or deformation occurs, and move the battery to a safe location.
- Protect the battery from impacts, puncture, and bending.
- Store the battery in a cool, dry, and well-ventilated environment, approximately 10–25 °C.
- For long-term storage, maintain approximately 40–60% state of charge.
- If stored for more than one year, perform a charge and discharge cycle to reactivate the battery.
- Keep the battery away from heat sources, direct sunlight, flammable materials, and metal objects that may cause a short circuit.
- Do not expose the battery to water or other liquids.
- Do not bend or open the sealed edges of the cell.
- Never connect batteries of different type, capacity, or model together.
- Keep out of reach of children.
- Dispose of depleted batteries at an authorized recycling facility.
