Produktbeskrivning

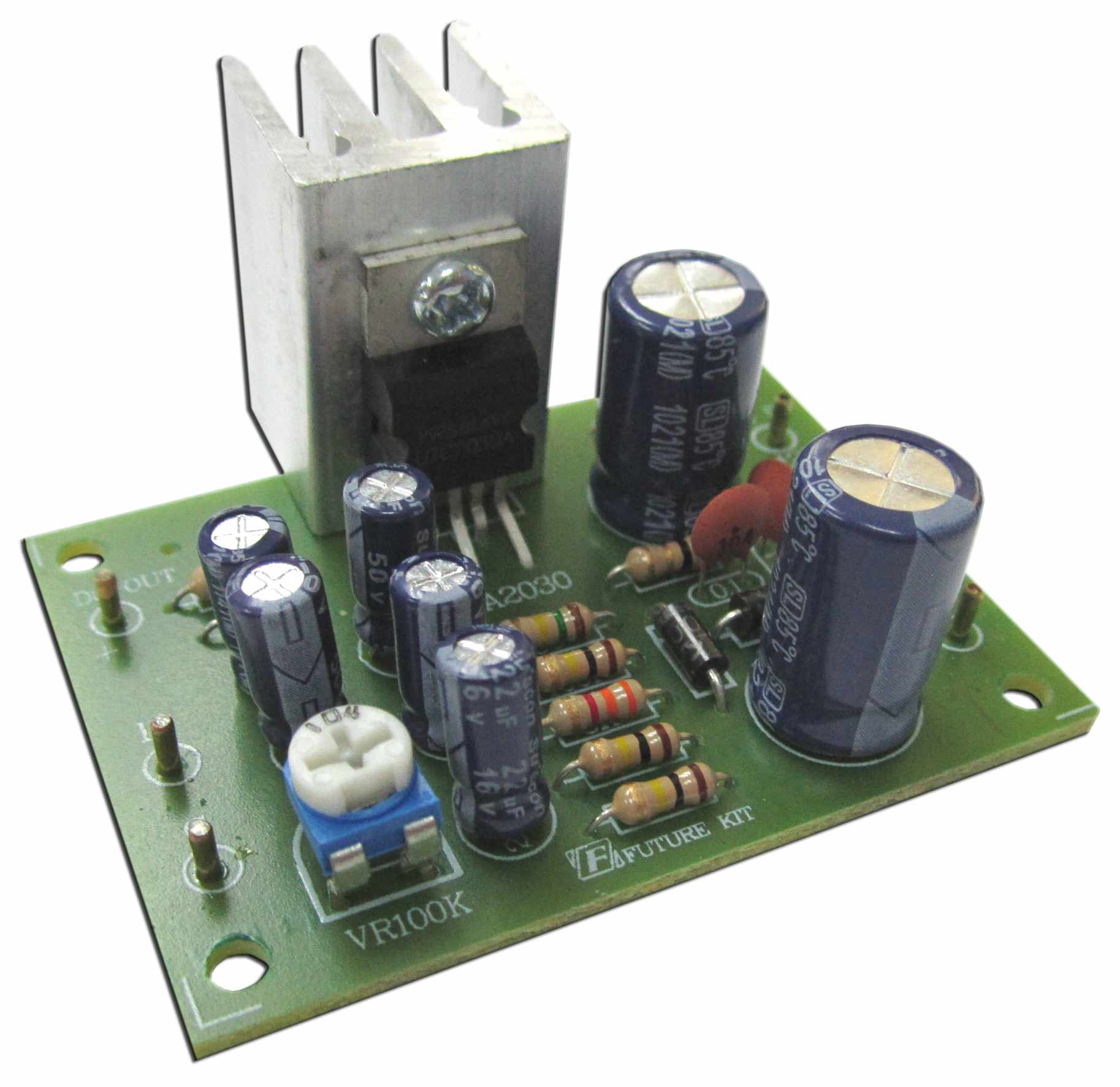

The power amplifier circuit uses IC Power Amp No. TDA2030.
Total harmonic distortion : 0.03% (0.1-14W/1kHz)
Frequency response : 20Hz to 20kHz (-3dB)
Power supply : 12VDC./800mA. max.
Output power : 8W @ 4
Sound level is adjustable by trimmer potentiometer.
S/A ratio : 94dB (A weighted)
Total harmonic distortion : 0.03% (0.1-14W/1kHz)
Frequency response : 20Hz to 20kHz (-3dB)
Power supply : 12VDC./800mA. max.
Output power : 8W @ 4
Sound level is adjustable by trimmer potentiometer.
S/A ratio : 94dB (A weighted)
