Produktbeskrivning

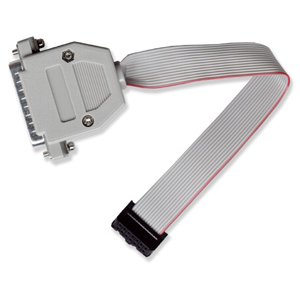

Interface för att ansluta LPC och ARM-processor via JTAG till PC för programmering och debugging- s.k wiggler. Anslutning mot målsystem är en 2x10-pol kontakt enligt ARM standard.
Anslutning mot PC är en 25-pol D-SUB.
Program LPC21xx, Atmel AT91, STMicroelectronics STR7 Parts, and other (not tested) ARM flash microcontrollers Uses ARM's standard 2x10 pin JTAG connector No external power supply required - all power is taken from the target board Compatible with Rowley's CrossConnect, IAR EWARM and GCC (OCD) software for programming, real time emulation, debugging, step by step program execution, breakpoints, memory dump etc. Everything a high priced emulator can do and more! IAR EWARM - unlimited assembler code size or in C with 16K limit for all LPC21xx ARM microcontrollers Works with free GCC C compiler and Insight tool chain and debugger.
Anslutning
1 - VREF
2 - VTARGET
3 - NTRST
4 - GND
5 - TDI
6 - GND
7 - TMS
8 - GND
9 - TCK
10 - GND
11 - RTCK
12 - GND
13 - TDO
14 - GND
15 - RST
16 - GND
17 - DBGRQ
18 - GND
19 - DBGACK
20 - GND
Anslutning mot PC är en 25-pol D-SUB.
Program LPC21xx, Atmel AT91, STMicroelectronics STR7 Parts, and other (not tested) ARM flash microcontrollers Uses ARM's standard 2x10 pin JTAG connector No external power supply required - all power is taken from the target board Compatible with Rowley's CrossConnect, IAR EWARM and GCC (OCD) software for programming, real time emulation, debugging, step by step program execution, breakpoints, memory dump etc. Everything a high priced emulator can do and more! IAR EWARM - unlimited assembler code size or in C with 16K limit for all LPC21xx ARM microcontrollers Works with free GCC C compiler and Insight tool chain and debugger.
Anslutning
1 - VREF
2 - VTARGET
3 - NTRST
4 - GND
5 - TDI
6 - GND
7 - TMS
8 - GND
9 - TCK
10 - GND
11 - RTCK
12 - GND
13 - TDO
14 - GND
15 - RST
16 - GND
17 - DBGRQ
18 - GND
19 - DBGACK
20 - GND
