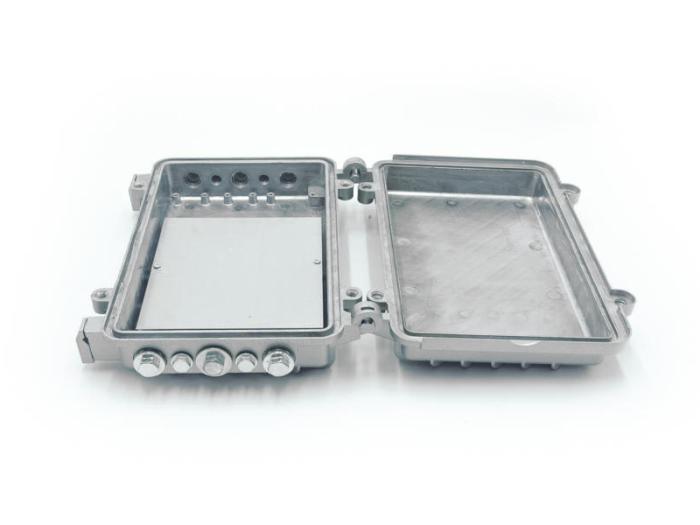

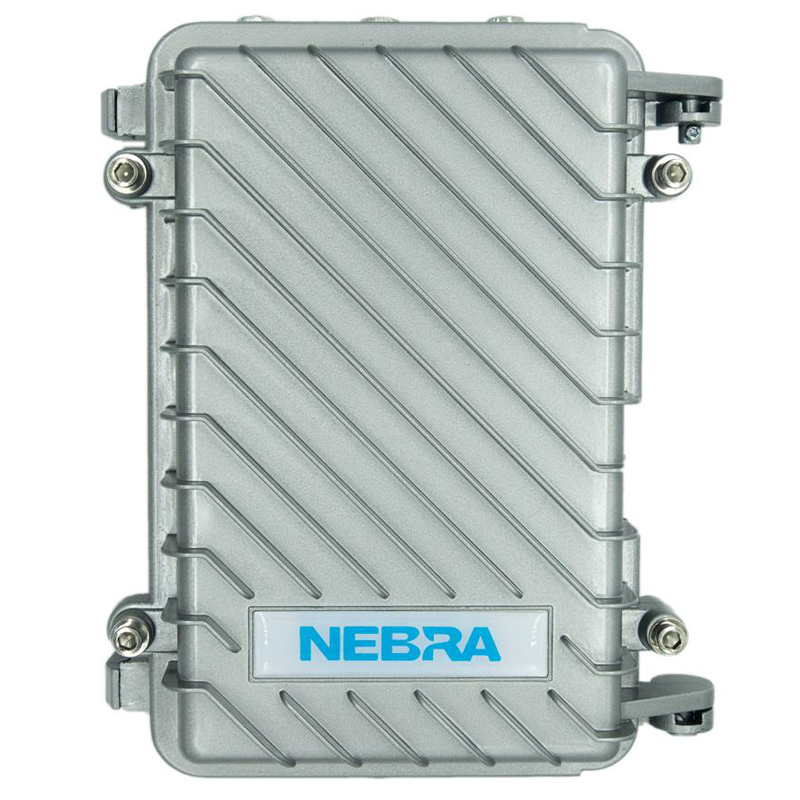

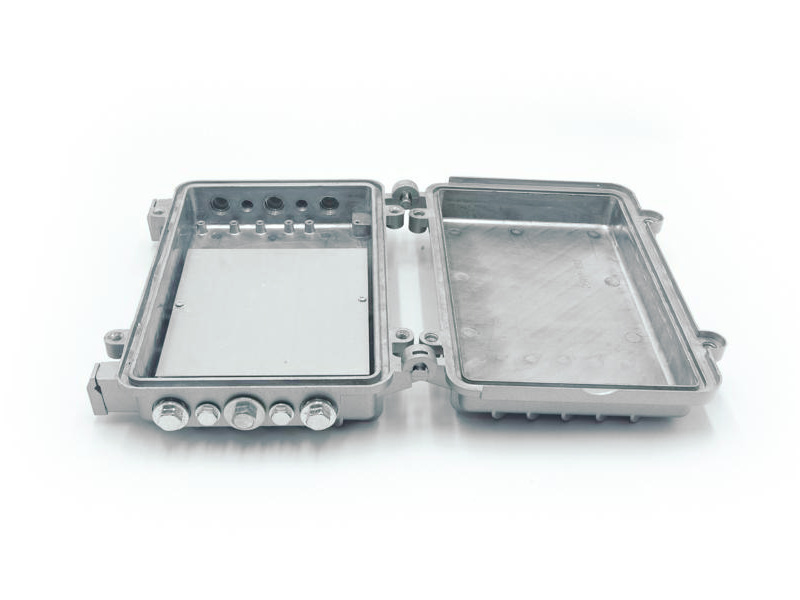

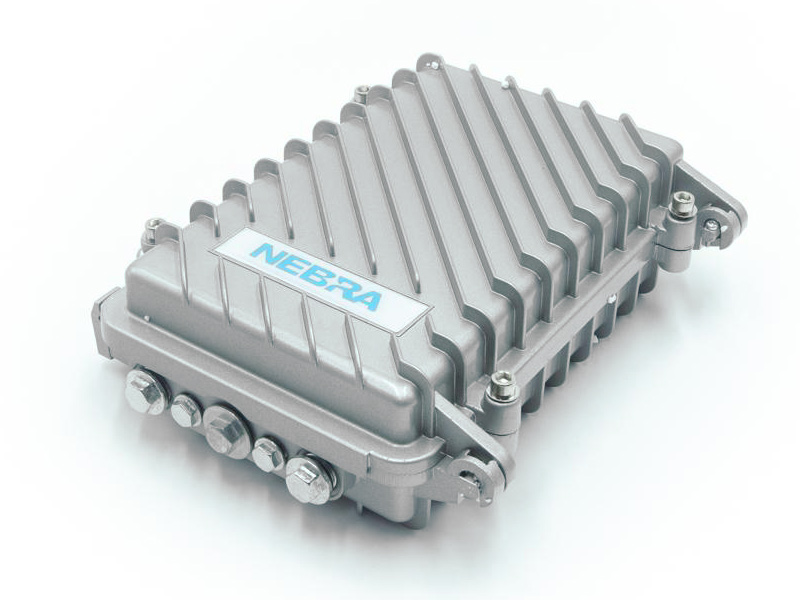

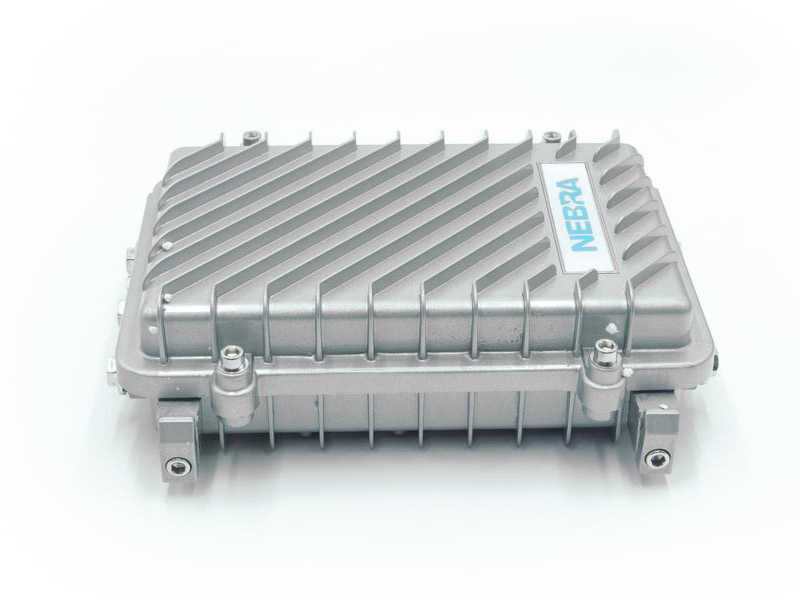

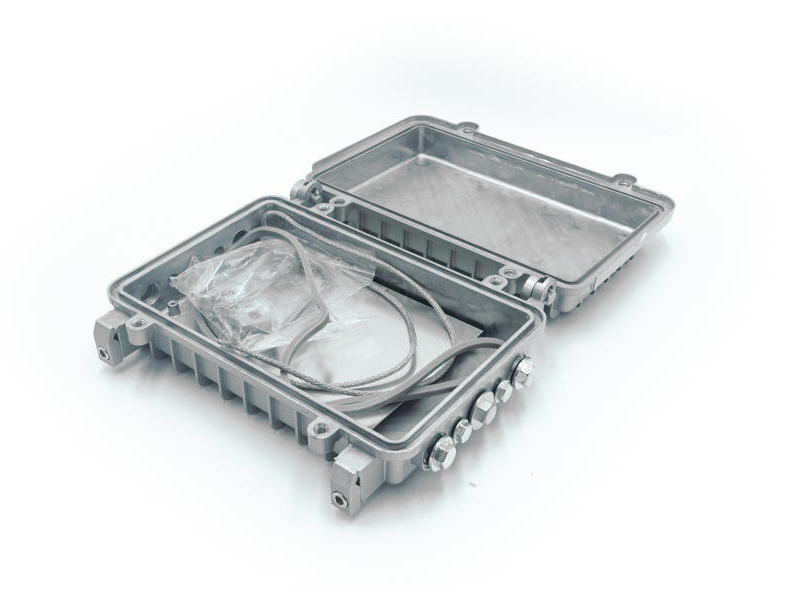

Aluminiumlåda gjuten IP67 235x155x75mm

Art nr: 41017387

Tyvärr, produkten har utgått ur vårt sortiment

12 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

Waterproof/weatherproof enclosure for outdoor use. We recommend using this case for the Pi Supply IoT LoRa Gateway HAT for Raspberry Pi.
The industrial design with heavy-duty double hinges and spring-loaded captive screws sees the case a premier solution.

Designed to withstand the toughest environments, the outdoor enclosure is a light, yet very solid wireless outdoor enclosure that fits most boards in today's market.

Being NEMA-67 rated, it provides complete protection against ingress of dust as well as protection against immersion in water.

Multiple Antenna Options

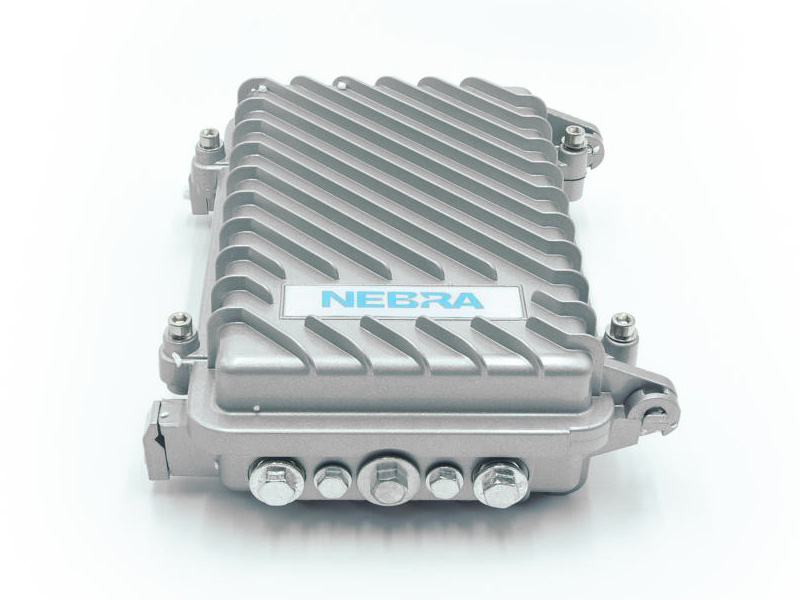

The N-Type antennas connectors are placed as far as possible from each other in order to increase spatial diversity and decrease RF grounding from the mounting mast.

Up to 5 antennas can be used for repeater operation, multiple band or MIMO smart antenna applications.

Note: We recommend these connectors: N-Type Bulkhead (RP SMA | UFL / IPEX)

Specifications
1 x Ethernet and 5 x N-Type holes
Enclosure Seal Operating temperature: -60C to +230C
Heat Trap: +6.5 Celsius under full sun (~100,000 Lux)
Temperature raise using a 5-10Watt heat source: +5.5 Celsius

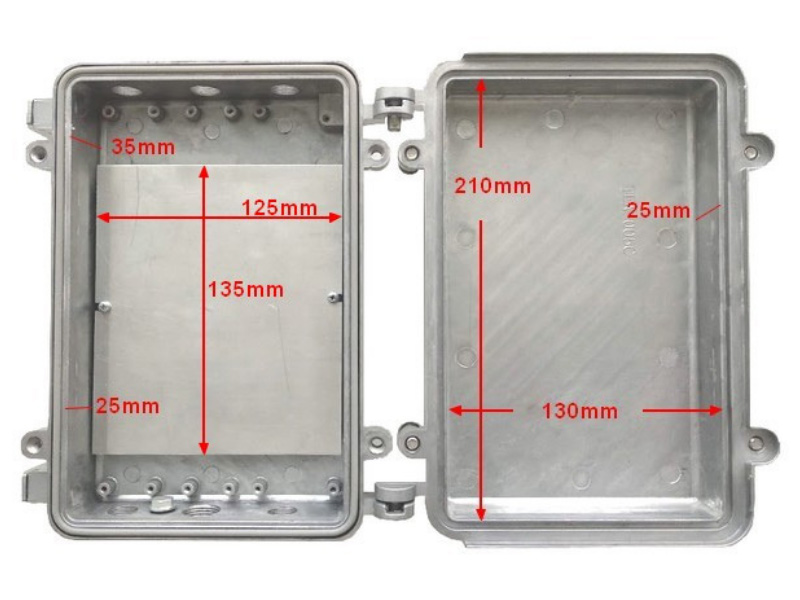

Inner dimensions: 210mm x 130mm x 50mm
Outter dimensions (w/o connectors): 235mm x 155mm x 75mm
Weight (inc mounting brackets): 1.4 Kg
Wall thickness: 5mm

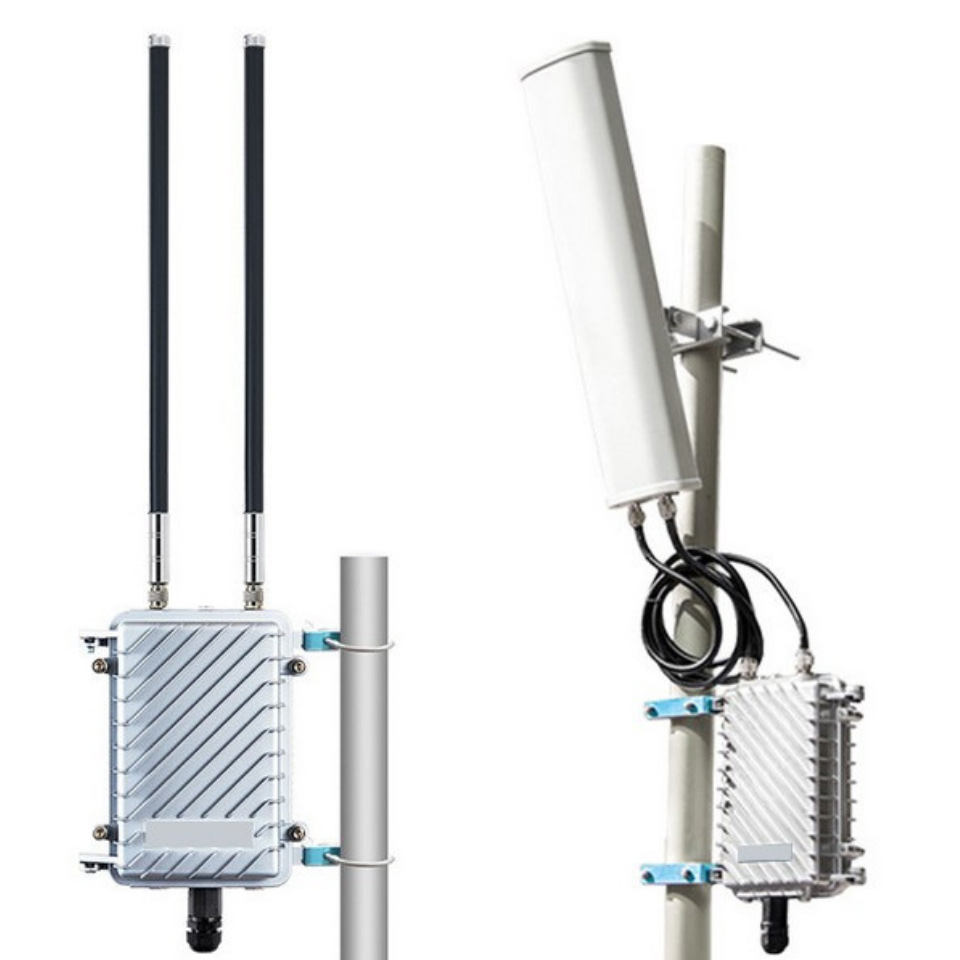

Supports masts: up to 50mm diameter
Packaging Contents
1 x IP67 Weatherproof Enclosure
4 x Self adhesive standoffs
1 x Rubber Gasket
4 x N-Type chrome plated brass plugs
2 x Z-Type mounting brackets
1 x Metal back plate
2 x Back plate screws (M3x6mm)
