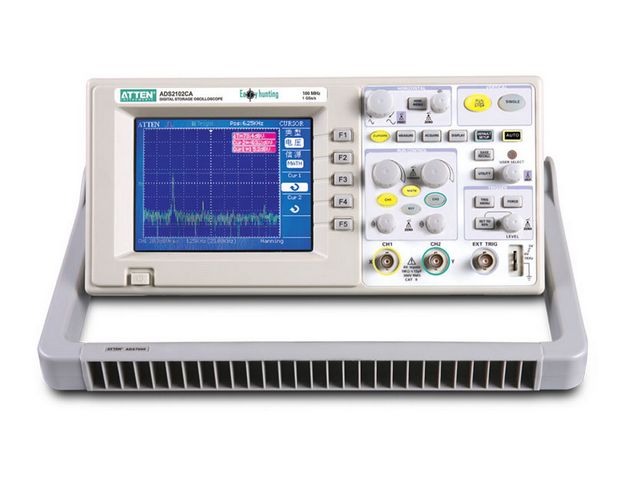

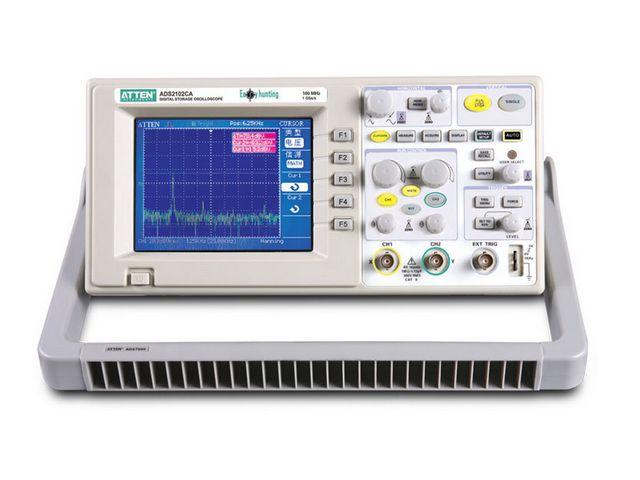

Product description
Utgående model - prissänkt. Gäller endast inneliggande lager.
Bandwidth: 60 MHz
Channels: 2
Rise time: <3.5ns
Vertical Sensitivity: 2mV - 5V/div(1-2-5 sequence)
Vertical Resolution: 8 bit Equivalent Sampling Rate: The highest sampling rate of each channel is 0GSa/s
Memory Depth: Each channel: at least 4k -1M / CH
Waveform capture rate: The highest capture rate exceed 1000times/sec
Save/Recall: Provide two groups ref waveforms, twenty groups ordinary waveforms and twenty groups setup save/recall function
Display modes: MAIN, WINDOW, WINDOW ZOOM, ROLL, X-Y
Trigger Types : Edge,Pulse Width,Video
Trigger Modes: Auto, normal, signal
Math operation: +, -, * , /, Invert
FFT: window:Hanning, Hamming, Blackman, Rectangular
Sampling points:1024points
Auto time
Measure types: Vpp, Vmax, Vmin, Vamp, Vhi, Vlo, Vavg, Mean, Vrms, Cycle Rms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, Positive Duty Cycle, Negative Duty Cycle, Burst Width, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Sample Types: Real time, Equivalent time
Averages: 4, 16, 32, 64, 128, 256
Display language: Manifold languages
XY Mode: Phase Error:±3 degrees
Support the sampling rate:5KSa/s~200MSa/s (in a 1-2-5 sequence)
Input voltage: 100-240 VAC, 47Hz-440Hz,50VA Max
Size and Weight: 300mm x 150mm x 290mm, about4.6kg
Accessories: (1:1?10:1)probe x2, USB Host,USB Device, EasyScope computer software system, cable, manual
Options GPIB communication Module ,UART module ,Pass/Fail Interface Module
